Timer Controller

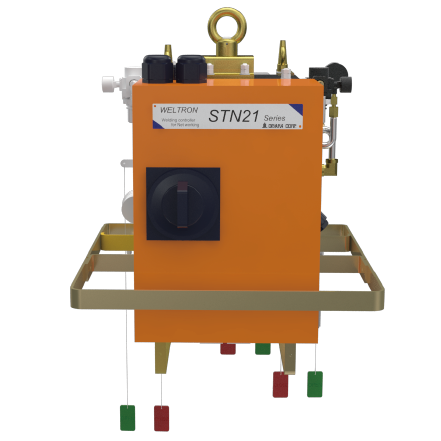

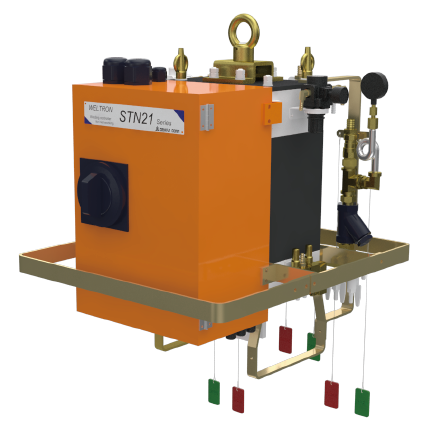

Trantim
Product Overview
The integrated product with AC-based timer control unit and transformers
Product Features
Does not need a timer deck so possible to design a welding line with a wide view
Skips (does not need) a wiring space between transformer timers
Simple to re-arrange in the line so it facilitates setting up a trial line
Uses a separate auxiliary control option box that a user wants: e.g. RB-20Seriec, RB-25Seriec
The simplified line facility with a pneumatic unit and a cooling unit
Specification
  • Name Trantim
    Series 150kva/180kva/200kva
    Size 793mm(W)X632mm(D)X1031mm(H)
    Weight(kg) 250kg
    Rated Input Voltage (V) Single-Phase 200/220/380/400/420/440/480Vac
    Input Frequency (Hz) 50/60Hz
    Workable Temperature (℃) 0~40℃
    Coolant Temperature (℃) 30℃ or less
    Coolant Flow (L / min) 10L/Min
